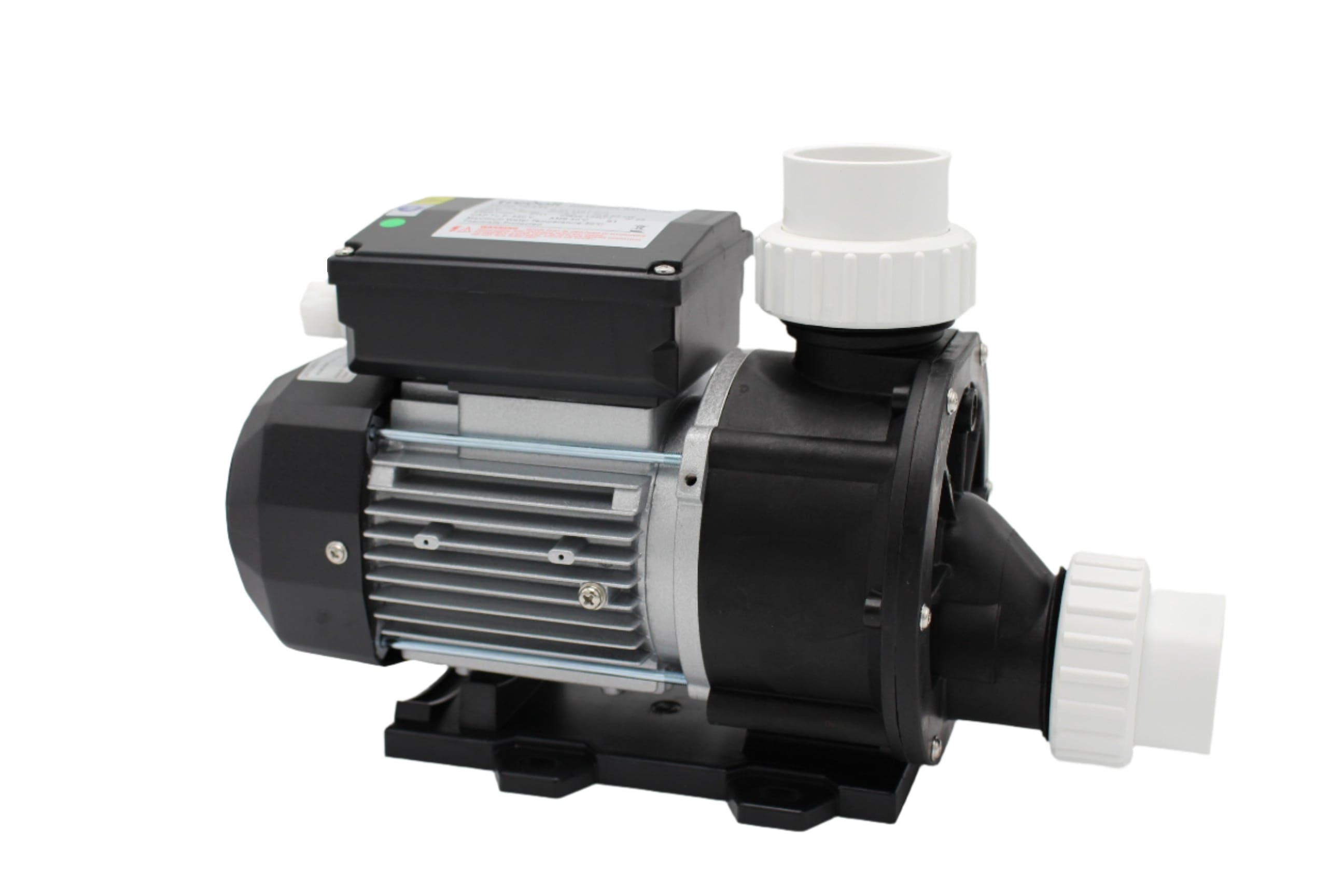

The Trevoli TDA35 Spa Pool pumps are robust and powerful single speed centrifugal pumps. Energy efficient and very quiet the TDA35 are ideal for spa pools, swimming pools, spa baths and aquaculture.
FEATURES
Corrosion protected shell to prevent water directly contacting with motor
Pump body and impeller in highly reinforced engineering grade plastic
Stainless steel motor shaft
Aluminium motor housing
Fitted with high temperature bearings for a long service life
Mechanical seal is ceramic stealite / metalized carbon
Very quiet operation
TECHNICAL FEATURES
Medium Temperature: 5-50°C
Environmental Temperature: < 40°C
Maximum Working Pressure: 3 Bar
IPX5 protection
Insulation class F
Rated for continuous use
Part No.
hp
P1 (kW)
P2 (kW)
Inlet/Outlet
Voltage
Amps
Phase
TDA35
0.3
0.2
0.1
40mm
220-240
1.6
1
