The Trevoli SV-750A-3 submersible pumps are ideal for many applications including effluent, dirty water, drainage, septic, aerated sewage treatment and grey water. Fitted with an anti-clogging vortex impeller they can process solids up to 37mm.
Features
Maximum Immersion Depth: 8m
Non clogging Vortex impeller design
Can process long fibres and solids up to 37mm
Double mechanical seals with oil chamber and lip seal for added protection
10 Metre R05RNF neoprene chemical and oil resistant electrical cable with 3 pin plug (Single Phase)
Comes with 80mm outlet hose fitting (removable)
Solid Cast Iron pump body and impeller for durability
Has a float switch for run-dry protection
Technical Features
Liquid Temperature: 0°C to 40°C
pH: 6 to 8
Protection Class: IP68
Rated for continuous use
Thermal overload protection
Part No. SV-750A-3
hp 1.0
kW 0.7
Outlet 80mm
Phase 3
Voltage 440
Amps 1.5
Max Solid 37mm

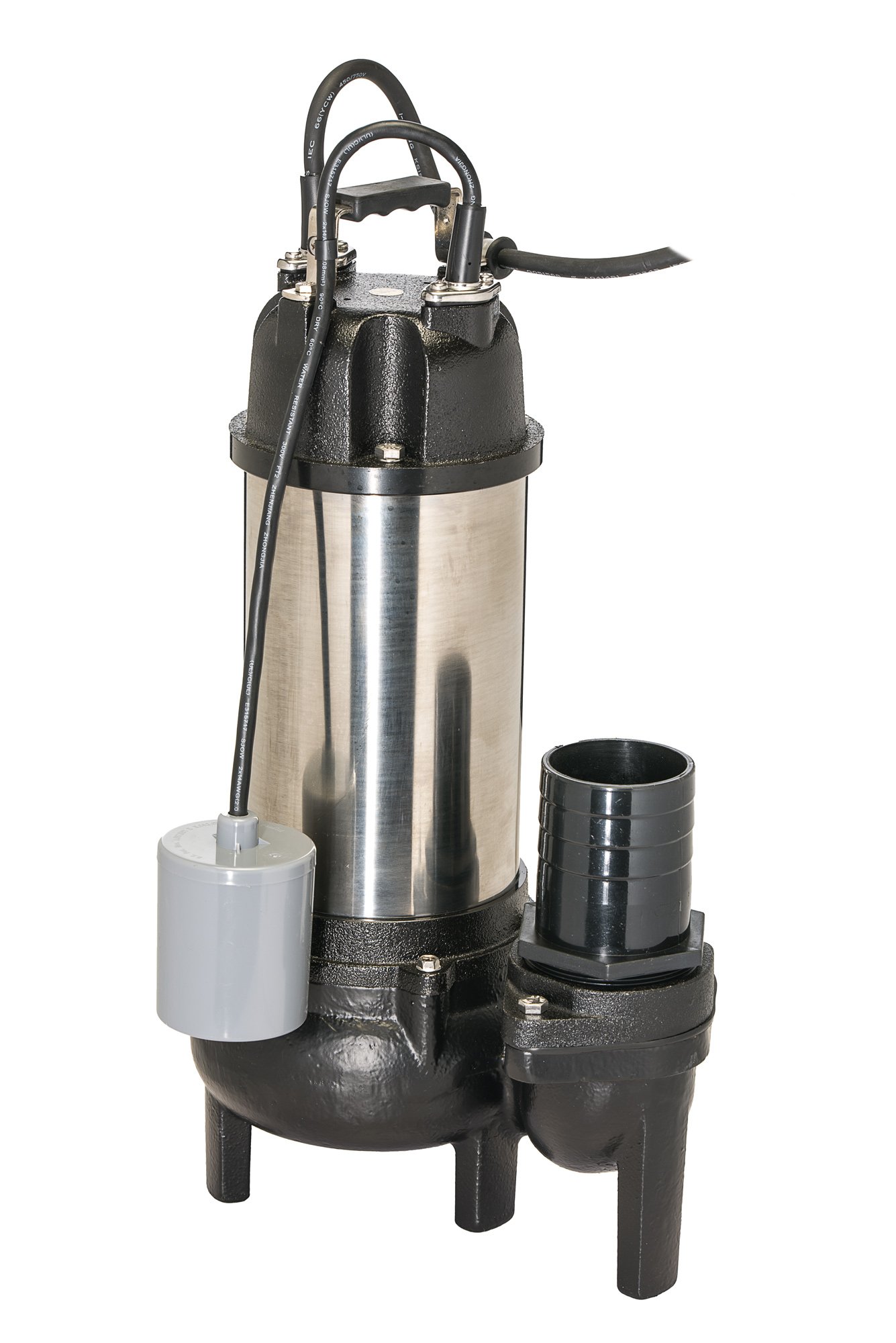

Trevoli SV-750A-3 Submersible Pump
Versatile Solution for Dirty Water Applications
The SV-750A-3 handles effluent, drainage, and grey water with its anti-clogging vortex impeller, processing solids up to 37mm. Its cast iron body and double mechanical seals ensure durability.
Key Specifications
- Power: 0.7 kW, 1.0 HP
- 80mm outlet, 440V three-phase
- Includes float switch and thermal overload protection
Discover the Trevoli SV-750A-3 submersible pump.
