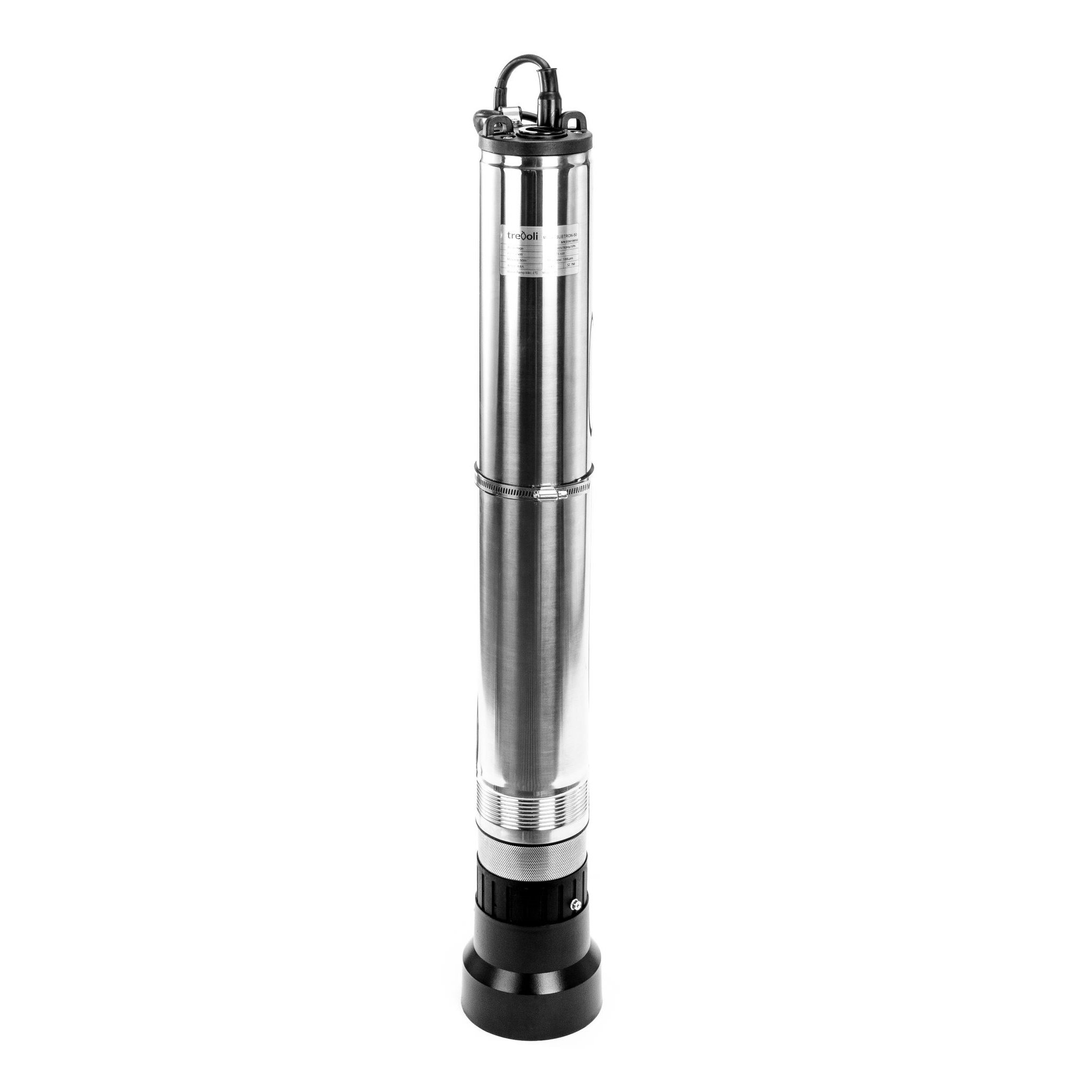

The Trevoli Subtron-50 is a light and compact, high-head submersible clean water automatic pressure system pump, supplied wired and ready to install. The pump includes an electronic automatic restart, built in electronic pressure control designed to automatically start and stop the pump when water is used, float switch installed for run dry protection.
Note: A pressure tank will increase the life of this pump and is highly recommended
Specifications:
Power: 1200 watts
Max Head: 50 Metres
Max Flow rate: 100lpm.
Voltage: 240v Frequency: 50Hz
Amps: 4.6
Maximum submergence: 7m
Outlet: 1″/25mm
Applications:
Household pressure systems
Garden & Sprinklers
Any clear water application requiring high pressure
Features:
Built-in electronic pressure switch and flow sensor 2.2 bar start
Equipped with dry-run protection
Rated for Continuous use
Built-in non return valve
Easy to use
High reliability
Supplied with 10 m power cord
Technical Features:
IPX68
Insulation class: F Power cable length: 15 m H07RNF Net weight: 12.0 kg Dimensions: 900H x 125W (mm)
Liquid: Clean water temperature range: 0 – 35 °C
Maximum ambient temperature: 40 °C
Pump body 304 stainless steel
Impeller, diffuser noryl glass reinforced
Mechanical seal carbon/ceramic/nitrile
Operation:
Fully electronic pump controller for automatic pump starting, stopping and resart after power loss or water loss.
Dry run protection to prevent pump damage.
2.2 bar cut in pressure.
Corrosion resistant pump components to ensure durability.
230V single phase TEFC motor with built-in auto reset thermal overload to prevent the pump from overheating.
2 Year Warranty
