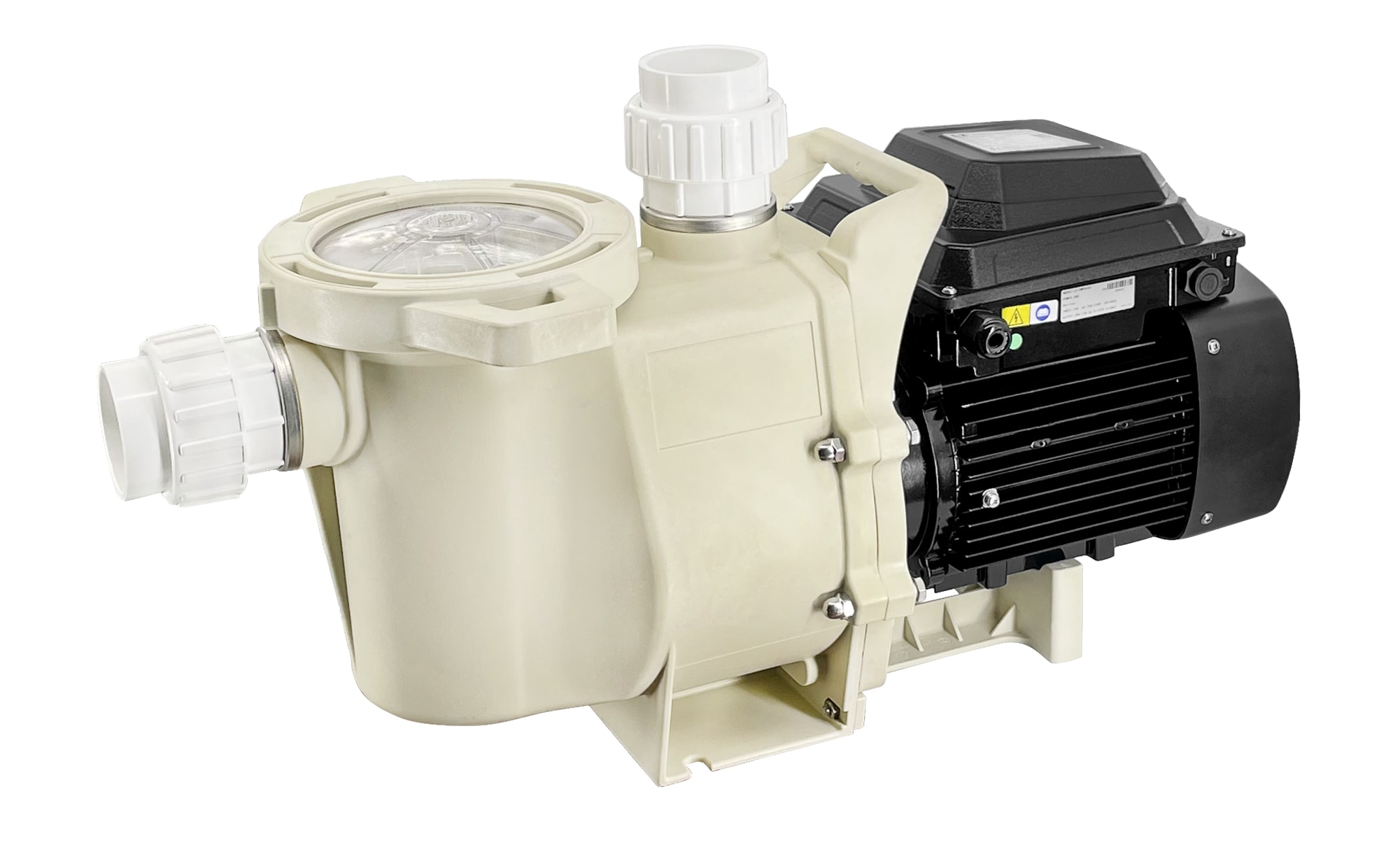

The Trevoli SPV300 Variable Speed Pump operates at a constant speed but offers the flexibility to be adjusted to different RPMs, providing pool and spa owners with various usage options. This technology carries multiple benefits including customizable performance, quieter operation and reduced ware on parts.
Implementing the ability to adjust RPMs at different intervals offers the advantage of optimising power consumption. By strategically setting RPMs based on specific needs or usage patterns, it becomes possible to effectively manage energy usage and uphold long-term cost savings. Suitable for pools 30,000 to 100,000 Litres. Specifications:
Model
kW
HP
Inlet
Outlet
Voltage
Phase
Hz
SPV300
2.9
3.9
40mm/50mm
40mm/50mm
230
1
50/60
Pumping Head (m)
Flow (lpm)
27
0
15
550
11
650
Features:
Easy to set controller
Multiple pre-set RPM modes
Adjustable RPM modes
IP55 Protection
Insulation Class F
Suction lift of 6m
Quiet Operation when running in low RPM mode
Includes 40mm and 50mm transition joint unions
Stainless Steel rings on discharge and intake to minimise thread issues
Constant VSD:
One touch controller
Pre-set and adjustable speed programs
Pre-set schedules
Creates power efficient pool, spa or water feature Applications:
Swimming Pools sized 30,000 to 100,000 Litres
Spa Pools
Water features Dimensions: Length- 605mmHeight- 314mmWidth- 276mm
23.6KG
2 Year Warranty
