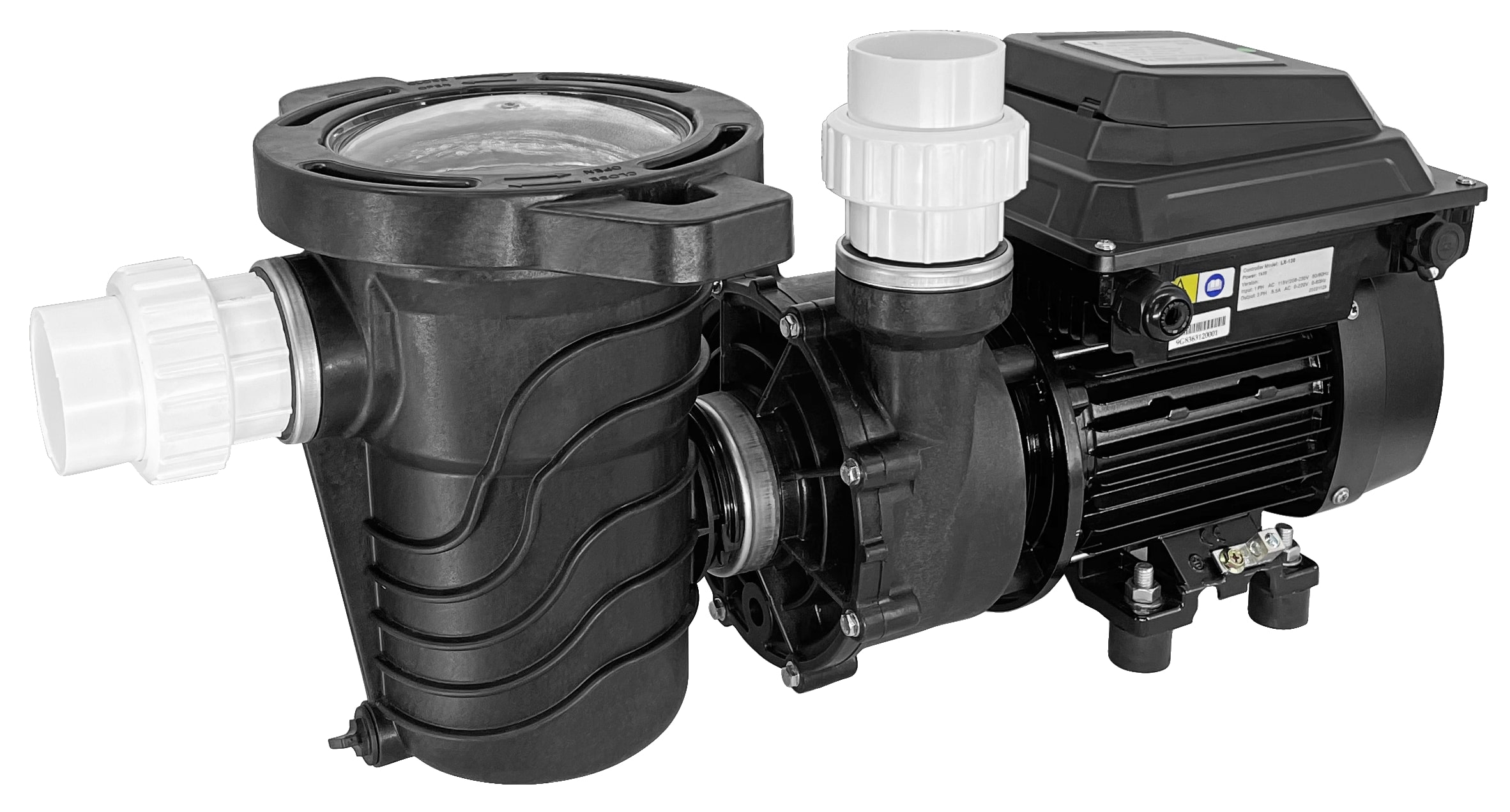

The Trevoli SPV100 Variable Speed Pump operates at a constant speed but offers the flexibility to be adjusted to different RPMs, providing pool and spa owners with various usage options. This technology carries multiple benefits including customisable performance, quieter operation and reduced wear on parts.
Implementing the ability to adjust RPMs at different intervals offers the advantage of optimising power consumption. By strategically setting RPMs based on specific needs or usage patterns, it becomes possible to effectively manage energy usage and uphold long-term cost savings. Suitable for pools 10,000 to 80,000 Litres.
Specifications:
Model
kW
HP
Inlet
Outlet
Voltage
Phase
Hz
SPV100
0.96
1.3
40mm
40mm
230
1
50
Pumping Head (m)
Flow (lpm)
17
0
10
210
2
340
Features:
Easy to set controller
Multiple pre-set RPM modes
Adjustable RPM modes
IP55 Protection
Insulation Class F
Quiet Operation when running in low RPM mode
Comes with 40mm unions Stainless Steel rings on discharge and intake to minimise thread issues
Constant VSD:
One touch controller
Pre-set and adjustable speed programs
Pre-set schedules
Creates power efficient pool, spa or water feature
Applications:
Swimming Pools sized 10,000 to 80,000 Litres
Spa Pools
Water features
Dimensions: Length- 518mmHeight- 256mmWidth-260mm
12.3KG
2 Year Warranty
