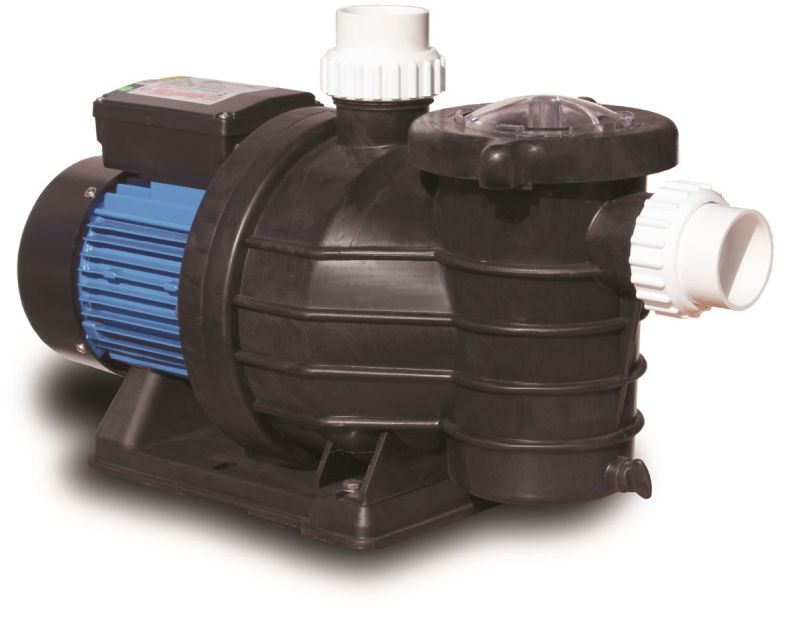

The Trevoli S100 Swimming Pool pump are a robust and powerful single speed pool pump. The S100 are ideal for swimming pool applications as well as spa pools, water features and solar heating.
FEATURES
1.5m suction lift
Constructed of strong corrosion and U.V. resistant materials
Easy to remove see through strainer lid allowing fast and easy removal of debris
2m power lead with 10amp three pin plug fitted to all models
Drain plug enables pump casing to be drained for easy maintenance
Heavy duty totally enclosed fan cooled double insulated motor
Barrel unions included for ease of installation and service
Elevated pump mounting corrosion resistant base keeps moisture well away from the motor
High performance machined ceramic stealite/ metalised carbon mechanical seals for long life
Stainless steel motor shaft
TECHNICAL FEATURES
Mains voltage: 50Hz
Enclosure class: IPX5
Insulation class: F
Duty rating: Continuous
Liquid temperature range: 5-50° C
Built-in thermal overload protects the motor against damage from overheating
Part No.
HP
P1 (kW)
P2 (kW)
Inlet/Outlet
Phase
Voltage
Amps
S100
0.7
0.7
0.5
40mm
1
220-240
3.8
