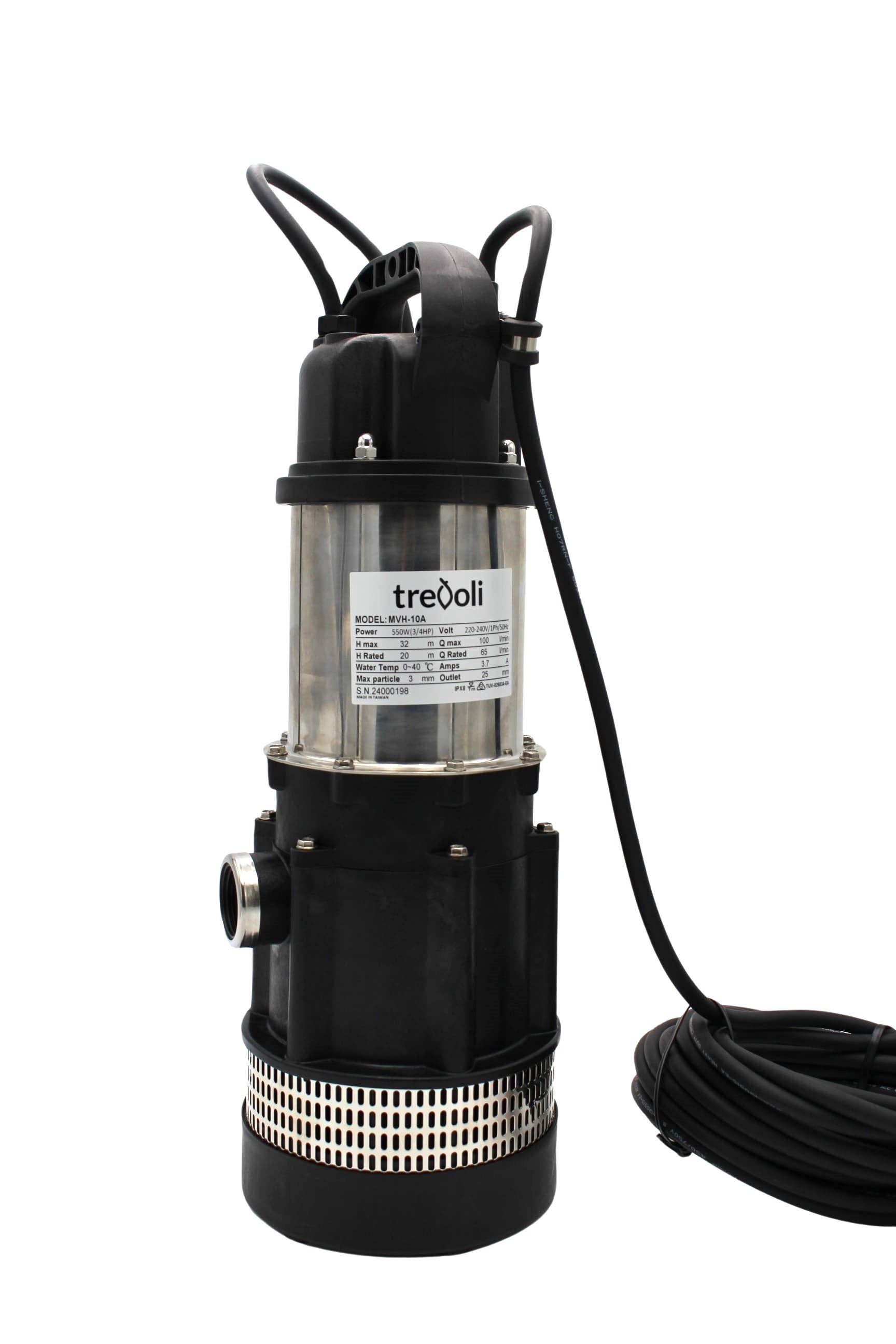

The Trevoli MWH-10A is a submersible high head pump designed for drip line applications, water transfer or domestic household use with an automatic controller. Fitted with PPO impellers, diffusers and comes with a built-in stainless-steel strainer.
Features
10 metre Cable

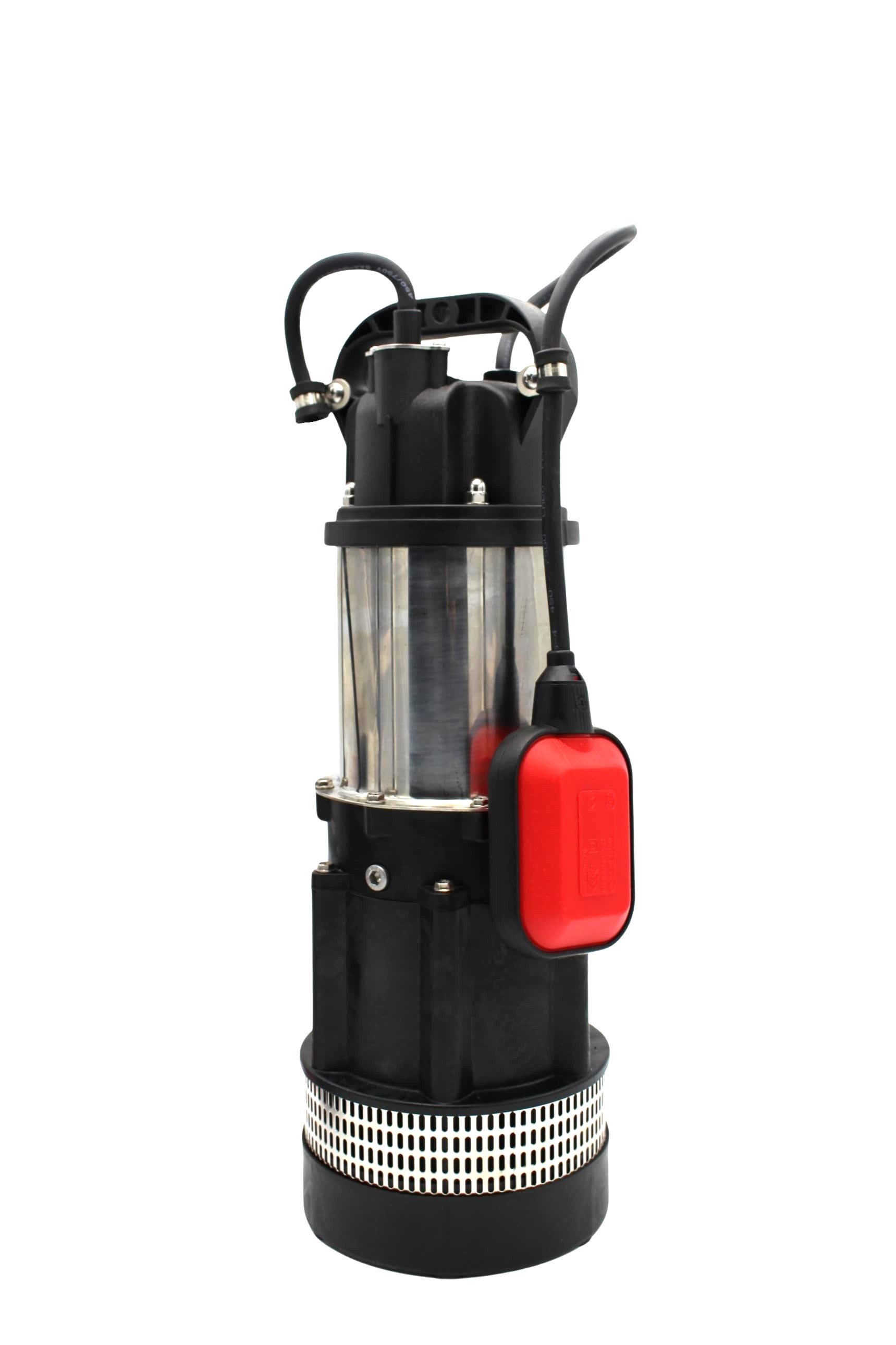

Includes Float Switch Stainless Steel upper body
Heavy Duty plastic bottom body and handle
Double mechanical seal (Carbon ceramic) in oil bath
In built s/steel Strainer High Quality PPO stages and impellers
S/steel Shaft Built in thermal overload protection
Technical Features
IP68
50 Hz
Capacitor: 18uF
Insulation Class: B
Liquid Temperature: 0-35°C
Maximum Temperature: 40°C
Part No. MWH-10A
hp 0.7
kW 0.5
Outlet 25mm
Phase 1
Voltage 220-240
Amps 3.4
Max Solid 2mm
The Trevoli MVH-10A Submersible High-Head Pump
Introduction
The Trevoli MVH-10A is a high-head submersible pump designed for drip line applications, water transfer, and domestic use. Its PPO impellers and stainless-steel strainer ensure reliable performance.
Key Features
- High-Quality Components: Features PPO stages, stainless steel shaft, and double mechanical seals.
- Safety: Includes built-in thermal overload protection and IP68 rating.
- Convenience: Comes with a 10m cable and float switch.
Applications
Ideal for household and light commercial water transfer tasks.
