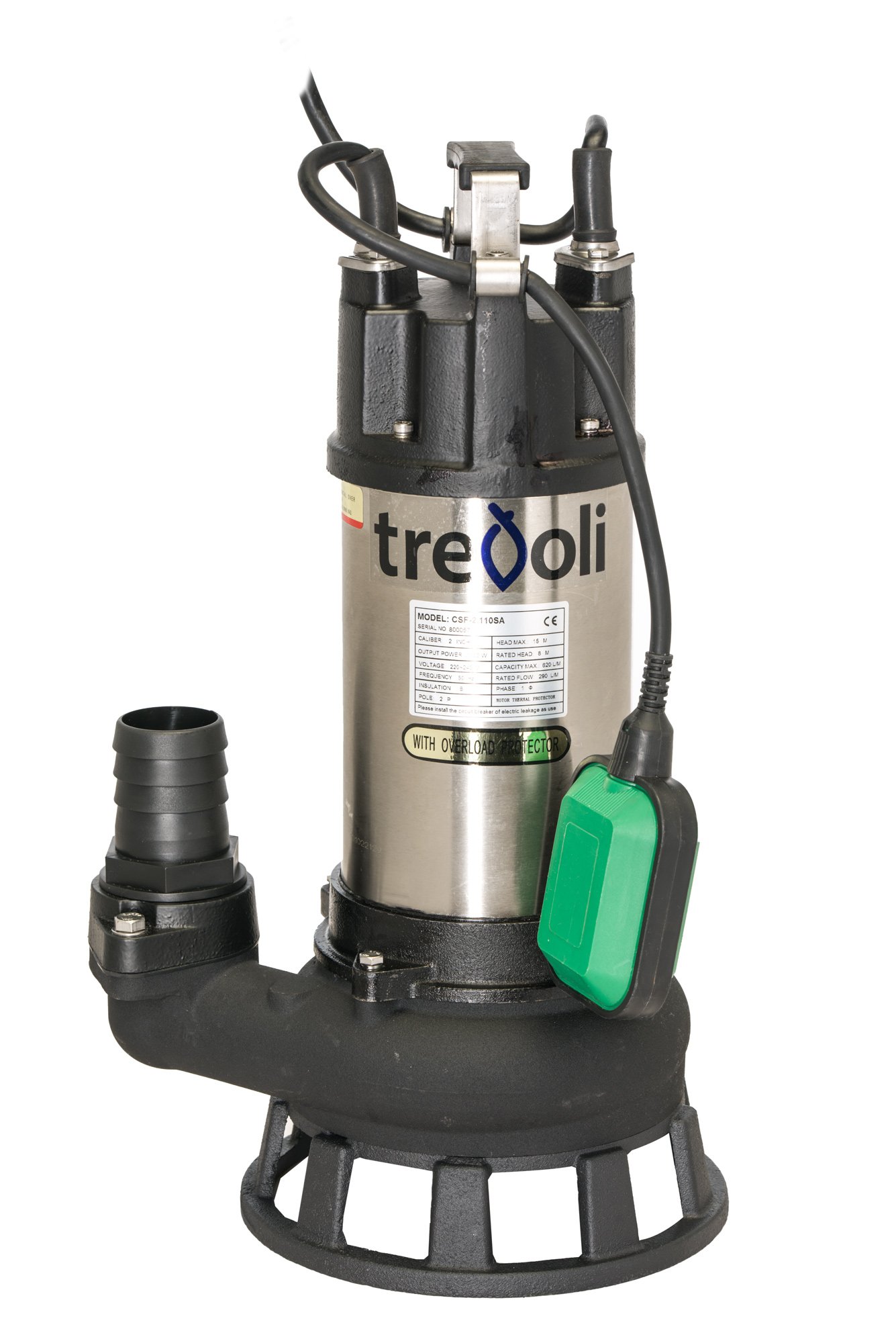

The Trevoli MG1100A submersible cutter pump (previously known as CS(F)-2.110SA) is designed for pumping sewage and soiled waste waters. Fitted with a double edge tungsten cutter and high abrasive-resistance impeller they are ideal for pumping waste water with stringy or long soft solids in suspension. Other Applications include De-watering, Effluent, Septic disposal & domestic sewage treatment.
FEATURES:
Max Immersion Depth: 8m
Double edge Tungsten cutter
High abrasive resistance impeller
Heat treated bottom grind plate for cutting sewage
Double mechanical seals with oil chamber and lip seal for added protection.
Non clogging Cutter/Macerator impeller design
Solid Cast Iron pump body and impeller for durability.
10 Metre HO7RNF neoprene chemical and oil resistant electrical cable with 3 pin plug
Cuts long soft stringy material
MOTOR FEATURES:
Continuous duty motor
Float Switch for Run Dry protection
Thermal Overload protection
IP68 protection
F Class Insulation
PH 6-8
Liquid temperature: 0-40°C
Part No. MG1100A
hp 1.5
kW 1.1
Outlet 50mm
Phase 1
Voltage 220-240
The Trevoli MG1100A Submersible Cutter Pump: Advanced Wastewater Management
Introduction
The Trevoli MG1100A is a submersible cutter pump designed for sewage and soiled wastewater applications. Its tungsten cutter and high-abrasion-resistance impeller ensure efficient handling of stringy solids.
Key Features
- Cutting Technology: Features a double-edge tungsten cutter and heat-treated grind plate.
- Durable Build: Includes a cast iron pump body and double mechanical seals.
- Safety: Equipped with float switch, thermal overload protection, and IP68 rating.
Applications
Perfect for dewatering, effluent, septic disposal, and domestic sewage treatment.
Learn more about the Trevoli MG1100A submersible pump or explore our contractor pumps. Visit our site.
