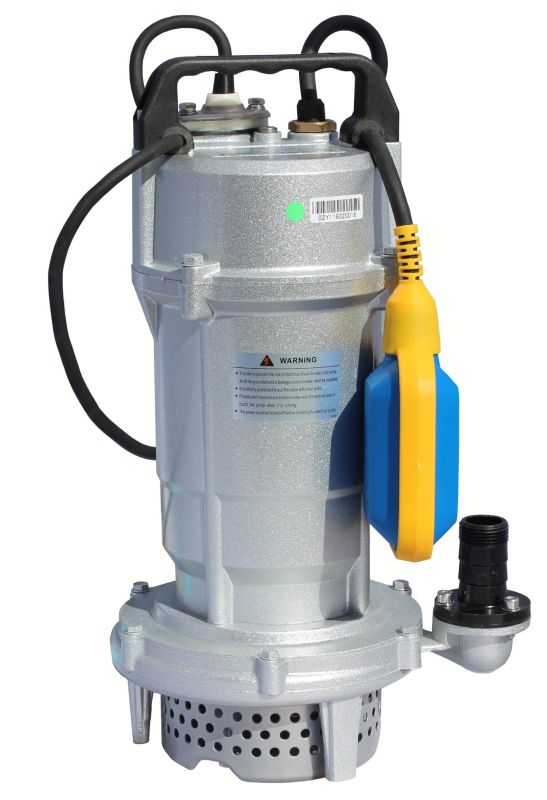

The Trevoli EF30-30 pumps are single impeller submersible pumps characterised by high delivery heights and relatively low volume. They have been specifically developed for effluent systems – pumping from the final chamber of septic systems to drip lines.
Features:
High head
Float switch for run-dry protection
10 Metre electrical cord
Power 220-240V with standard 3 pin plug
1” hose tail with 3/4 inch BSP (20mm) threaded outlet
Max immersion depth: 5 metres
Foreign body size: Up to 2 mm
Technical Features:
Max Motor speed: 3000 rpm
Insulation class: B
Thermal overload protection
Foreign body size: Up to 2 mm
PH level range of liquid 6.5-8.5
Temperature-0-40°C
Model EF30-30
hp 1.5
kW 1.1
Outlet 25mm
Phase 1
Voltage 220-240
Amps 7.0
Max Solid 2mm
Trevoli EF30-30: Professional Effluent Management
Heavy-Duty Septic System Performance
With 1.1kW power output, the EF30-30 delivers commercial-grade effluent pumping for large properties and agricultural applications. Its robust construction handles continuous operation with reliability.
Performance Specifications
• 1.5HP motor
• 7.0A current
• 3000 RPM speed
• 25mm outlet
• IP68 protection
• Thermal cut-out
For demanding septic and wastewater applications, this pump offers exceptional durability. Find the right professional pumping solution for your needs.
