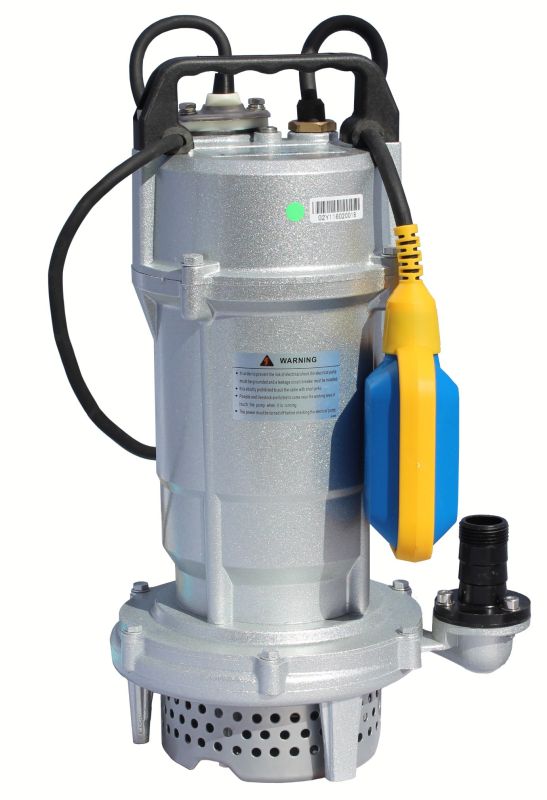

The Trevoli EF15-25 pumps are single impeller submersible pumps characterised by high delivery heights and relatively low volume. They have been specifically developed for effluent systems – pumping from the final chamber of septic systems to drip lines.
Features:
High head
Float switch for run-dry protection
10 Metre electrical cord
Power 220-240V with standard 3 pin plug
1” hose tail with 3/4 inch BSP (20mm) threaded outlet
Max immersion depth: 5 metres
Foreign body size: Up to 2 mm
Technical Features:
Max Motor speed: 3000 rpm
Insulation class: B
Thermal overload protection
Foreign body size: Up to 2 mm
PH level range of liquid 6.5-8.5
Temperature-0-40°C
Model EF15-25
hp 0.7
kW 0.55
Outlet 25mm
Phase 1
Voltage 220-240
Amps 3.9
Max Solid 2mm
