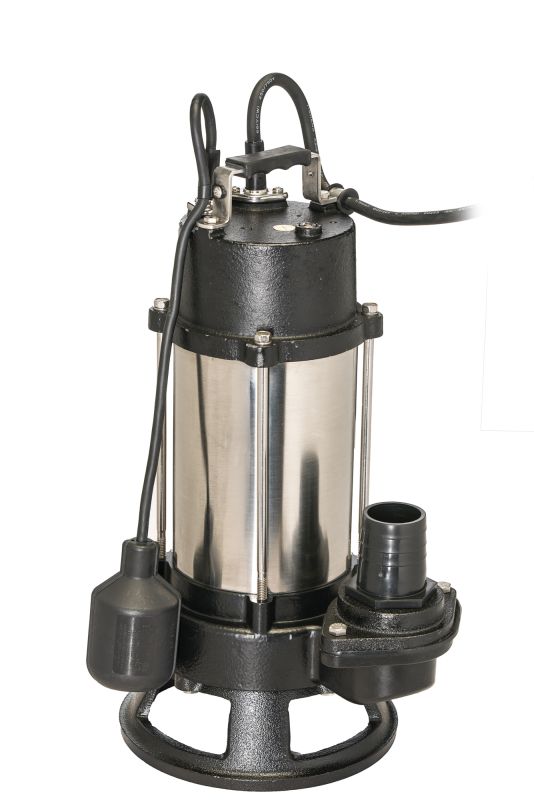

The DSK-10 submersible cutter pumps are designed for pumping sewage and soiled wastewater. Fitted with a double edge Tungsten cutter and high abrasive-resistance impeller they are ideal for pumping waste water with stringy or long soft solids in suspension. Other applications include Domestic and light industrial sewage treatment, septic and effluent disposal and waste water drainage.
Features
Double edge Tungsten cutter
High abrasive-resistance impeller
Heat treated bottom grind plate for cutting sewage.
Stainless steel motor housing
Non clogging Cutter/Macerator impeller design.
Double edge tungsten blades.
Cuts long soft stringy material.
Has a float switch for run-dry protection.
Double mechanical seals with oil chamber and lip seal for added protection.
10 Metre HO7RNF neoprene chemical and oil resistant electrical cable with 3 pin plug.
Solid Cast Iron pump body and impeller for durability.
Maximum Immersion Depth: 8m
Technical Features
Liquid Temperature: 0°C to 40°C
PH: 6 to 8
Motor with IP68 protection
F class insulation
Rated for continuous use.
Auto-reset thermal overload protection.
Part No. DSK-10
hp 1.0
kW 0.7
Outlet 50mm
Phase 1
Voltage 220-240
Amps 7
