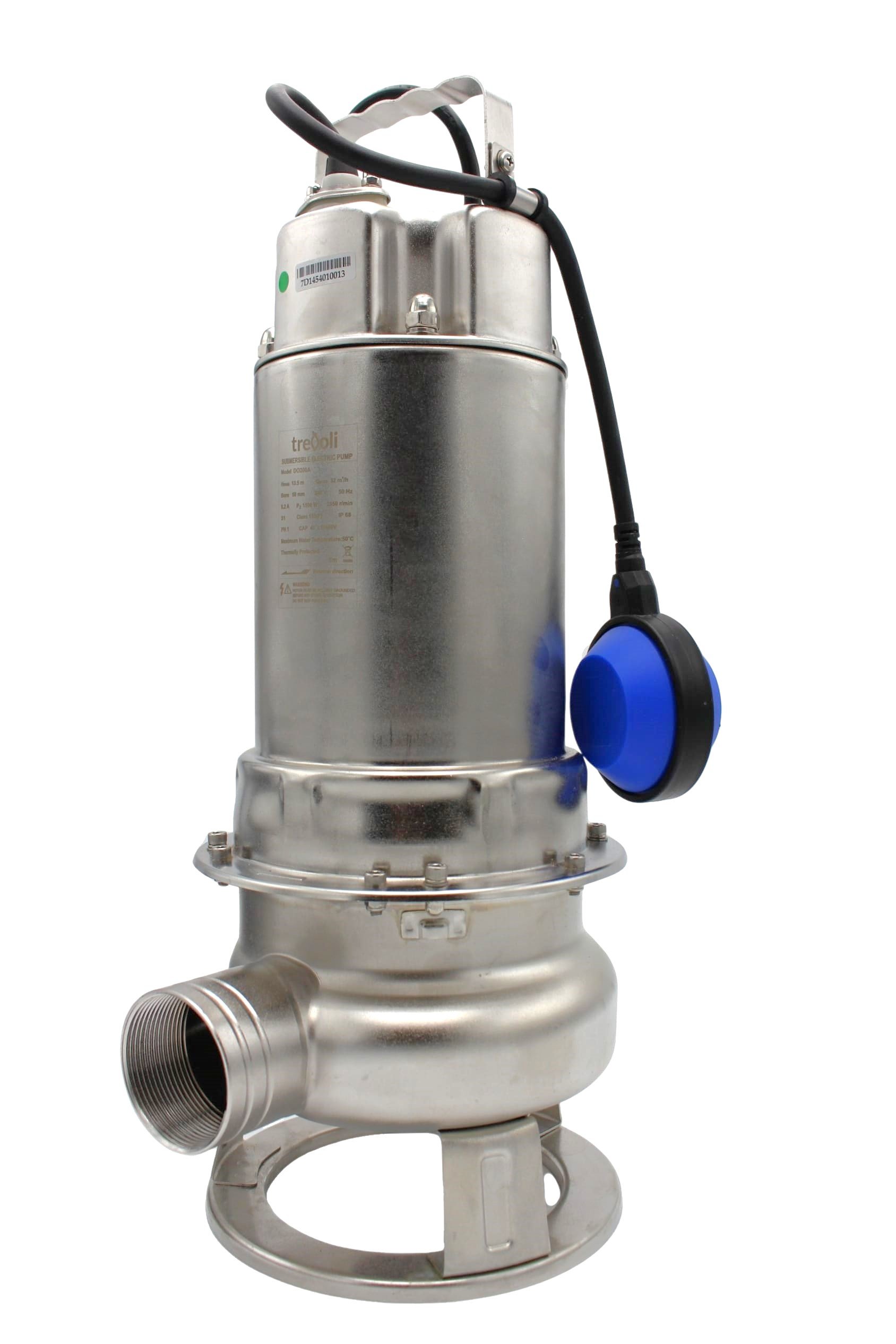

The Trevoli DO200A is a 50mm (2″) submersible pump used in clean and dirty water applications. The DO series pumps have a stainless steel body and open vortex impellers that offer great resistance to clogging as well as being less sensitive to wear. The DO200A has a max solid pass through of 50mm. Sold with float switch & 10m cable. Specifications:
Max Head: 13m
Max Flow: 533 lpm
Motor: 1500w
230v- Single Phase Outlet: 50mm
Features: Impeller: Stainless Steel open impeller
Mechanical Seal: Double shaft seal
Motor Housing: Stainless Steel
Thermal Protection
IP68
Insulation Class: F
High temperature bearings
Max Solid Pass Through: 50mm
Max Immersion Depth: 5m
Max Liquid Temp: 50 degrees
pH: 6.5 up to 8.5 Applications:
Sewage systems
Draining basements & sumps
Water transfer
Used in clean water and sewage applications
Dimensions:
Length: 228mm
Width: 228mm
Height: 505mm
Weight: 18.9KG
Two Year Warranty
Trevoli DO200A: Heavy-Duty Submersible Pump for Challenging Applications
Robust Stainless-Steel Construction
The Trevoli DO200A is a 50mm (2″) submersible pump designed for clean and dirty water applications. Its stainless-steel body and open vortex impeller offer superior resistance to clogging and wear, making it ideal for demanding tasks. With a maximum solid pass-through of 50mm, the DO200A can handle even the toughest jobs.
Equipped with double shaft seals, a stainless-steel motor housing, and thermal protection, this pump is built to last. It also includes a float switch and a 10-meter cable for added convenience. Whether you’re managing sewage systems, draining basements, or transferring water, the DO200A delivers reliable performance.
For a heavy-duty submersible pump, the Trevoli DO200A is an excellent choice. Its rugged design and advanced features make it suitable for both residential and industrial applications.
Performance and Key Features
The DO200A offers a max head of 13m and a max flow of 533 lpm, powered by a 1500w motor. Its IP68 protection class and F-class insulation ensure safe operation in various environments. The pump is rated for liquids with a pH level of 6.5 to 8.5 and can handle temperatures up to 50 degrees Celsius.
With dimensions of 228mm (length) x 228mm (width) x 505mm (height) and a weight of 18.9KG, the DO200A is compact yet powerful. Its high-temperature bearings and mechanical seals further enhance its durability. For more options, check out our submersible pumps for drip line and septic field applications.
Trevoli DO200A: Built for Durability
The Trevoli DO200A is designed to withstand the rigors of heavy-duty use. Its stainless-steel construction and advanced features make it a reliable choice for challenging applications. Whether you’re dealing with clean water, dirty water, or sewage, this pump delivers consistent performance.
To explore our full range of products, visit our homepage and find the perfect pump for your needs.
