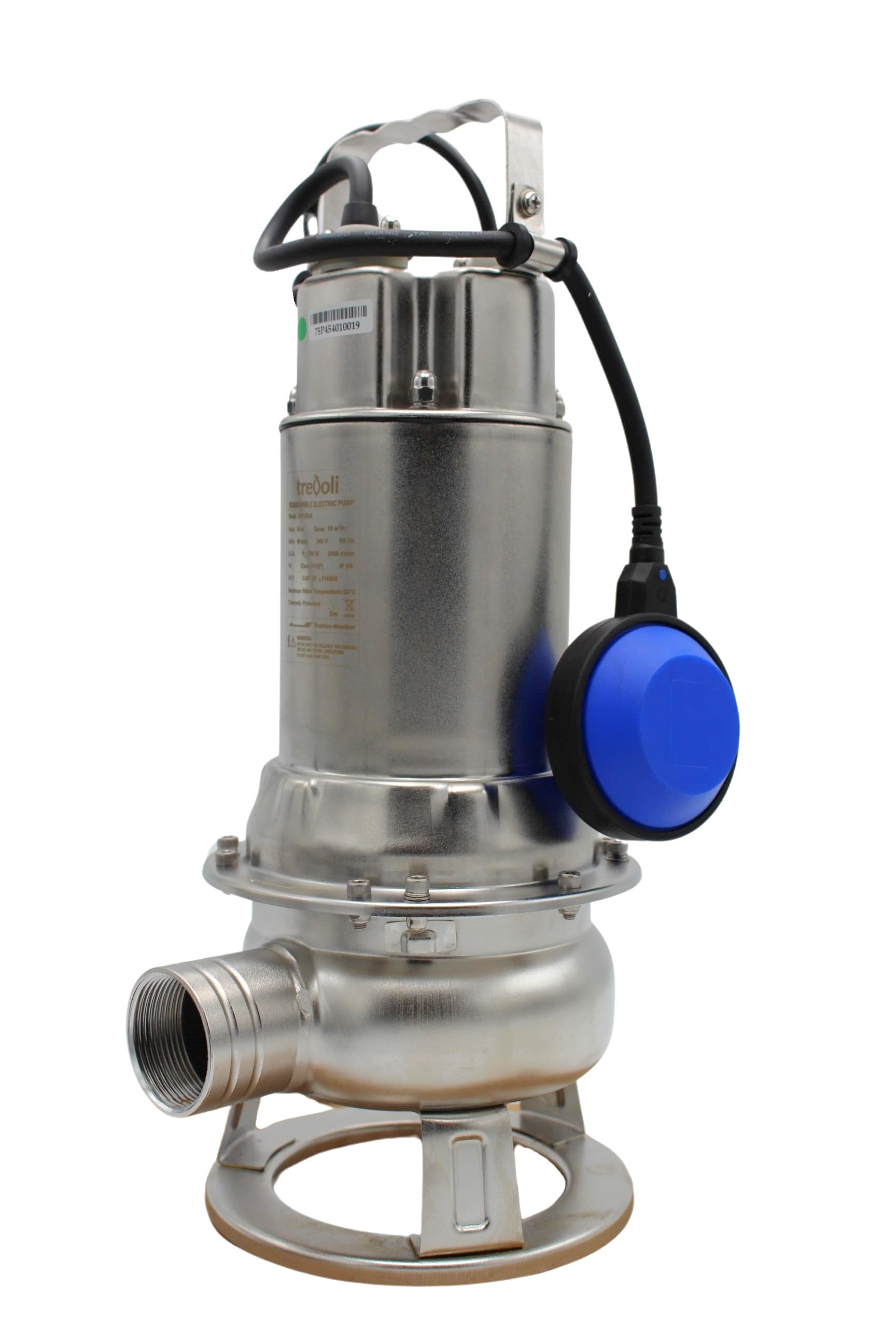

The Trevoli DO100A is a 40mm (1.5″) submersible pump used in clean and dirty water applications. The DO series pumps have a stainless steel body and open vortex impellers that offer great resistance to clogging as well as being less sensitive to wear. The DO100A has a max solid pass through of 30mm. Sold with float switch & 10m cable.
Specifications:
Max Head: 10m
Max Flow: 266 lpm
Motor: 750w
230v- Single Phase Outlet: 40mm
Features:
Impeller: Stainless Steel open impeller
Mechanical Seal: Double shaft seal
Motor Housing: Stainless Steel
Thermal Protection
IP68
Insulation Class: F
High temperature bearings
Max Solid Pass Through: 30mm
Max Immersion Depth: 5m
Max Liquid Temp: 50 degrees
pH: 6.5 up to 8.5 Applications:
Sewage systems
Draining basements & sumps
Water transfer
Used in clean water and sewage applications
Dimensions:
Length: 209mm
Width: 209mm
Height: 445mm
Weight: 12KG
2 Year Warranty
