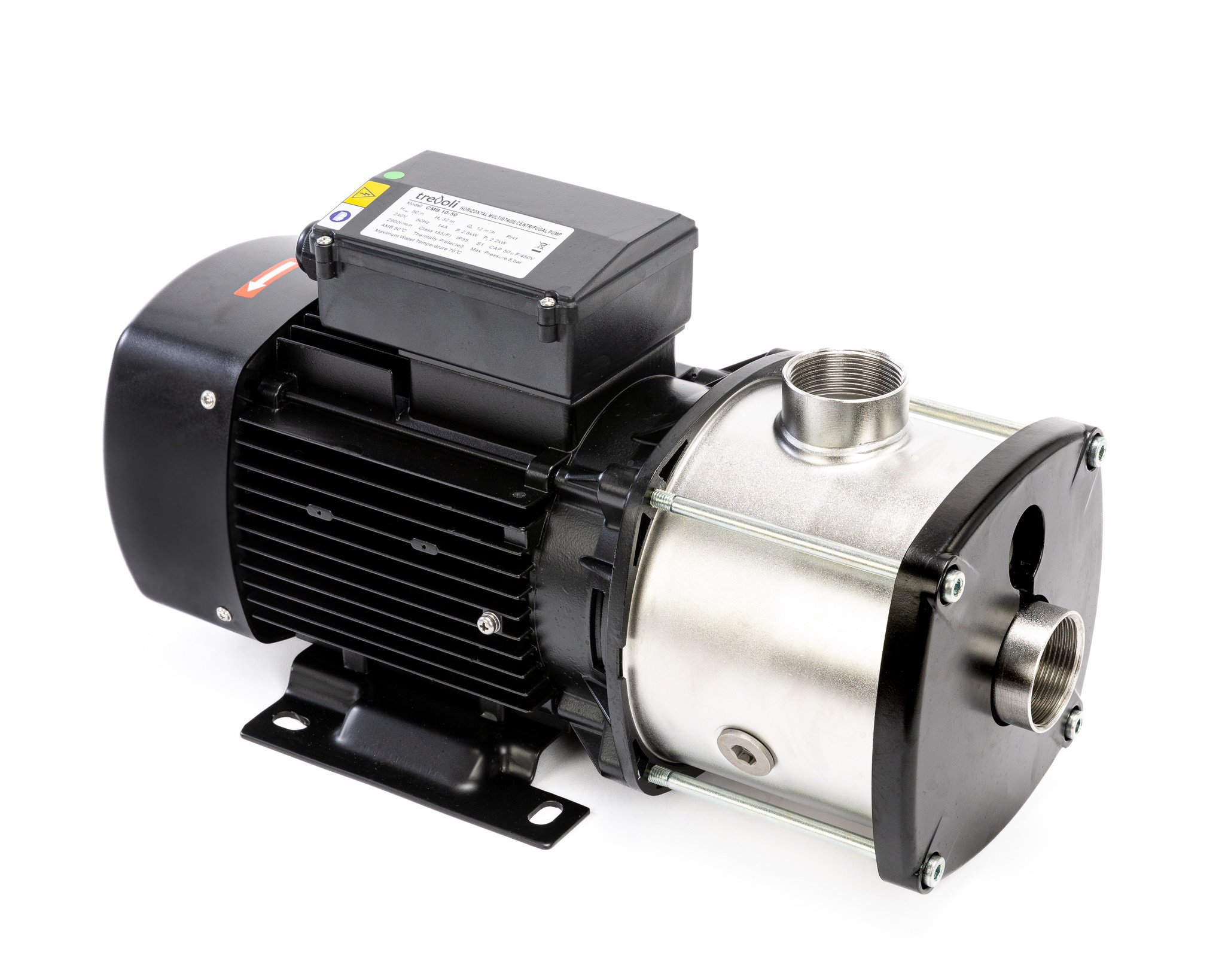

The Trevoli CMB10-50 is ideal for domestic water supply, providing mains pressure for a large single or multi-level home (plus). Able to support up to 22 taps running at one time. Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow). Starts automatically when the tap is turned on and stops automatically when the last tap is turned off when fitted with a pump controller, operating constantly from low flow to full flow.
Specifications:
Power -2200W – 3.0 Horsepower
Amps-14
Single phase fitted with 15 amp plug.
Max Flow rate: 260 LPM
Max Pressure: 66 psi
Max discharge head: 47 metres
Max suction 1.5m
Inlet/Outlet: 1.5 inch BSP (same as 40mm)
Built in thermal overload protection
Insulation class F
IP55 Protection
Rated for Continuous duty
Liquid temperature range: -20 – 70 deg C
Dimensions: Length 449mm x Height: 217mm x Width: 199mm
Applications:
Domestic water supply for large / very large homes
General water transfer systems
Industrial/commercial applications
Features:
Thermal protection
IP 55 protection
Corrosion resistant stainless steel construction
Stainless steel pump housing
Stainless steel motor shaft
Stainless steel impeller and intermediate chambers
Built in thermal overload protection
Very quiet operation
2 Year Warranty
