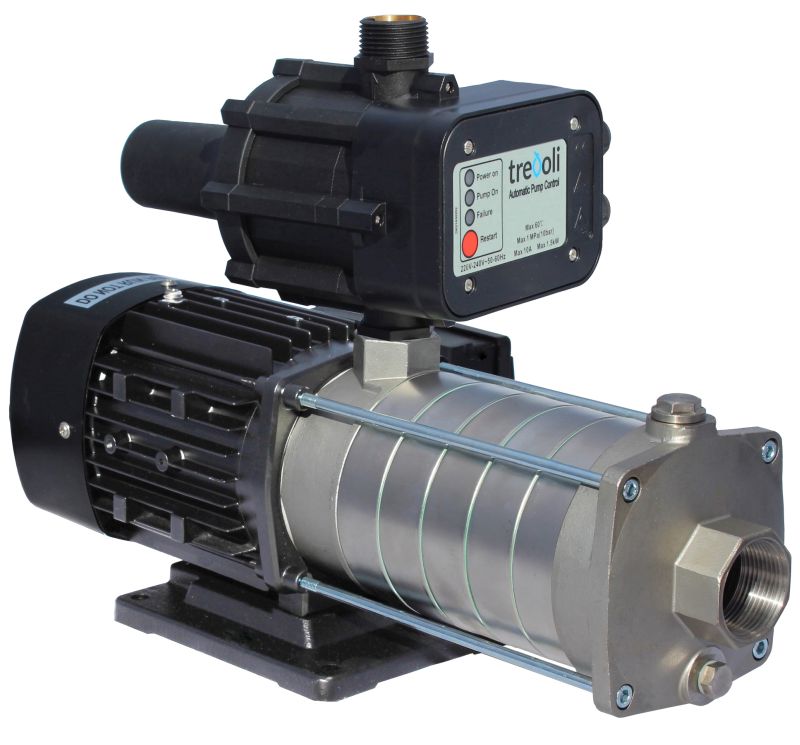

The Trevoli CM4-60 is a stainless steel multistage pump built to a proven design. All parts that come into contact with the pumped water are stainless steel. They are ideal for domestic water supply where suction is not required. The CM2 and CM4 ranges come in 5 models and are designed to provide mains pressure for homes ranging from small single level to large multi-level homes and lifestyle blocks. CM pumps are very quiet in their operation.
FEATURES
Liquid temperature: 0-70°c
Maximum operating pressure: 10 bar
Enclosure class: IP55
Insulation class: F
Duty rating: Continuous
Built in thermal overload protection
1.5 metre power cable with a 3-pin plug (CM12 with 15 Amp plug)
CONSTRUCTION MATERIALS
Mechanical seal: Machine made carbon/Sic/EPDM
Stainless steel suction and discharge chambers
Stainless steel impellers and stages
Low noise bearings and stainless steel motor shaft
Part No. CM4-60
hp 1.5
kW 1.1
Inlet/Outlet 32/25mm
Phase 1
Voltage 220-240
Amps 7
Trevoli CM4-60 Stainless Steel Multistage Pump
Introduction
The Trevoli CM4-60 is a stainless steel multistage pump designed for domestic water supply. Its high-performance design ensures reliable and quiet operation for larger homes.
Key Features
- Liquid temperature range: 0-70°C
- Maximum operating pressure: 10 bar
- Enclosure class: IP55
- Insulation class: F
- Built-in thermal overload protection
Construction Materials
- Mechanical seal: Carbon/Sic/EPDM
- Stainless steel suction and discharge chambers
- Stainless steel impellers and stages
- Low-noise bearings and stainless steel motor shaft
Technical Specifications
- Part No.: CM4-60
- Power: 1.5 hp (1.1 kW)
- Inlet/Outlet: 32/25 mm
- Phase: 1
- Voltage: 220-240 V
- Amps: 7 A
For more details, visit the Trevoli CM4-60E product page or explore our range of multistage pumps.
