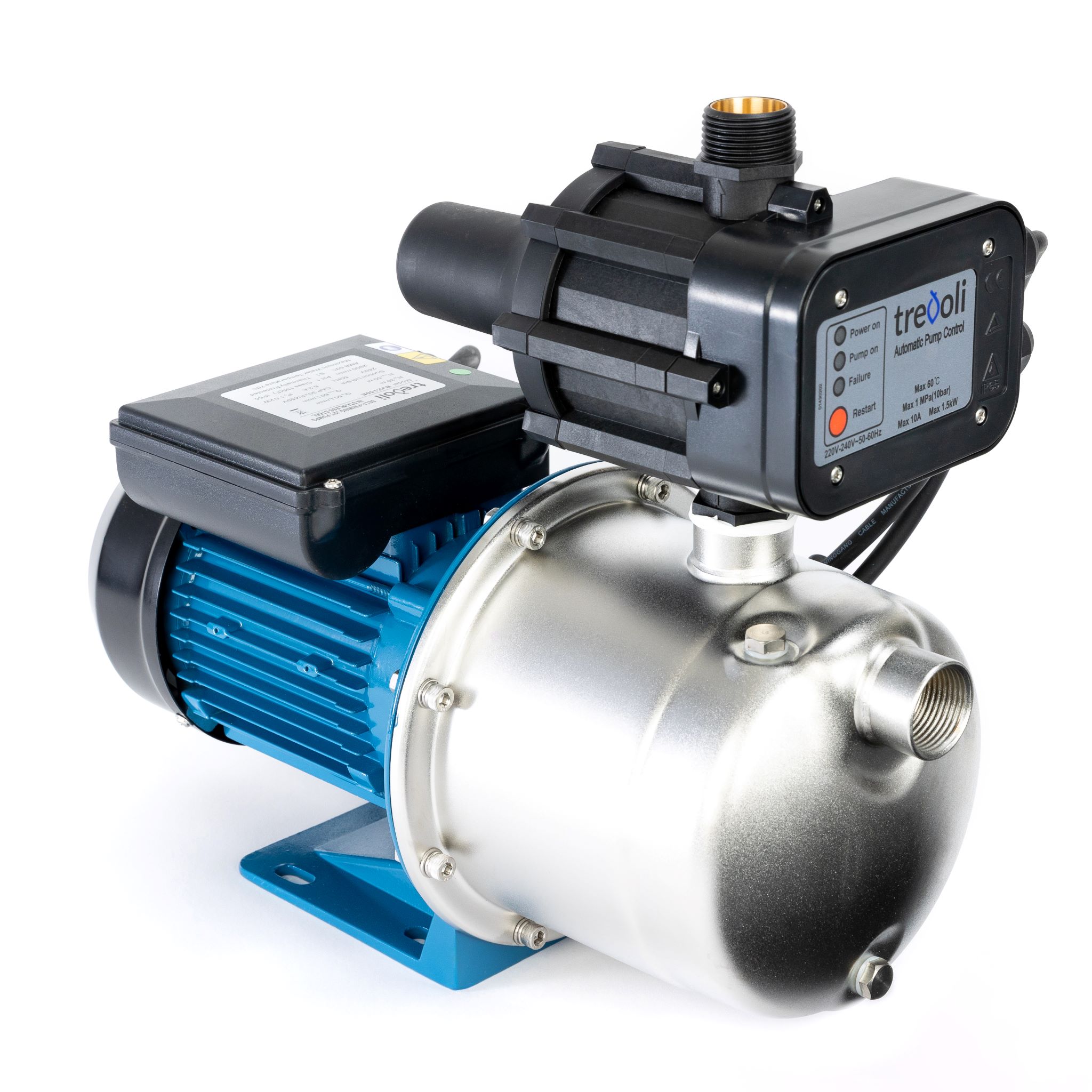

The BJZ150 with their proven reliability and excellent self-priming ability make them ideal for any house or farm water supply system. The Jet and venturi design allows suction lift up to 8m – great for drawing from rivers, dams & ponds, shallow wells and underground tanks. Easy to prime.
TECHNICAL FEATURES:
Max working pressure: 8bar
Max liquid temperature: +60°c
Max suction lift: 8m
MOTOR FEATURES:
TEFC continuous duty motor
Class B Insulation
Ambient temperature: ≤50°C
Internal overload protector
IP55 protection
CONSTRUCTION MATERIALS:
Pump casing, seal plate, pump shaft & Impeller: 304 Stainless Steel
Mechanical seal: Carbon/Ceramic
Diffuser/Venturi: PPO
O Rings: EPDM
Motor mount and casing: Aluminium
Part No.
hp
kW
Inlet/Outlet
Phase
Voltage
Amps
BJZ150
1.3
1.0
25mm
1
220-240
6.2
