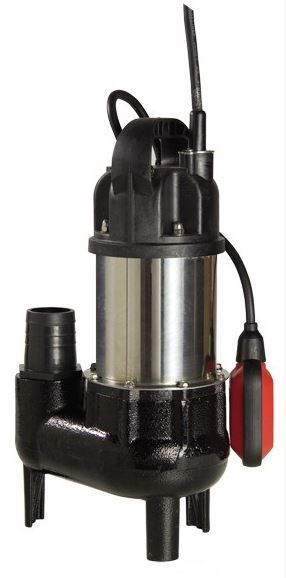

The Trevoli BCV-400 submersible pump is ideal for a number of applications including Effluent, Dirty Water, Drainage, Septic/Aerated Sewage Treatment, Grey Water and Irrigation. Fitted with an anti-clogging vortex impeller they can process solids up to 50mm. A heavy duty and solid all-round pump that gets the job done.
FEATURES
Fitted with a Float Switch for run dry protection
Double mechanical seals with lip seals and oil chamber – Silicon/ceramic – protected with oil seal – exceptional durability
Solid Cast Iron pump body and impeller for durability
Non clogging Vortex impeller design – high passage clearance for sewage, dairy sheds, de- watering
Power Cable length: 10m with 3 pin plug
TECHNICAL FEATURES
Liquid Temperature: 0°C to 40°C
Protection Class: IP68
Maximum Immersion Depth: 8M
PH level: 6-8
Rated for continuous use
Thermal overload motor protection
Part No. BCV-400 hp 0.5 kW 0.4 Outlet 50mm Phase 1 Voltage 220-240 Amps 4 Max Solid 50mm
Trevoli BCV-400 Submersible Pump
Versatile and Durable Pump for Effluent and Drainage
The Trevoli BCV-400 submersible pump is designed for demanding applications, including effluent, dirty water, drainage, septic/aerated sewage treatment, grey water, and irrigation. Its anti-clogging vortex impeller handles solids up to 50mm, making it a reliable choice for heavy-duty tasks.
Features and Technical Specifications
- Float switch for run-dry protection
- Double mechanical seals with lip seals and oil chamber
- Solid cast iron pump body and impeller for durability
- Non-clogging vortex impeller design
- Power cable: 10m with 3-pin plug
- Maximum immersion depth: 8m
- Rated for continuous use with thermal overload protection
Learn more about the Trevoli BCV-400A submersible pump.
