Trevoli 20″ Triple Big Blue Jumbo Heavy Duty Filter Housings are manufactured using high quality Polypropylene. Compatible with a broad range of chemicals, ideal for high flow and heavy sediment applications. The standard bracket is powder coated steel but are also available with stainless steel brackets and stands. They accept a wide variety of 4.5″ diameter cartridges. Filter housing options are also available with a high quality oil filled gauge.
Specifications: Large capacity housing suitable for high flow applications
20″ in length
Pressure relief/bleed valve on inlet side of cap
Comes with spanner, mounting bracket and 4 bolts
Temperature Rating: 2 – 37°C
Maximum working pressure: 125 psi
Brass threaded ports
Made from Food Grade Materials
Model BB20-TRIPLE Length (mm) 570 Height (mm) 590 Depth (mm) 207 Port to Port (mm) 555 Inlet/Outlet 25mm Suits 20″ Cartridge x3

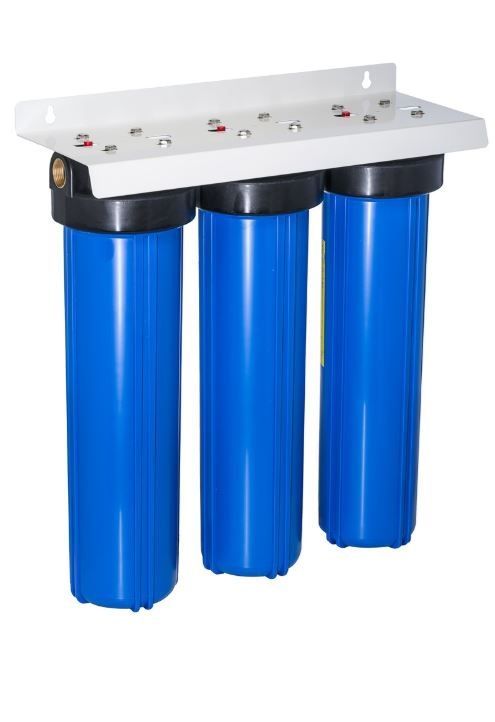

Trevoli BB20-TRIPLE Triple Big Blue Jumbo Heavy Duty Filter Housing
Introduction
The Trevoli BB20-TRIPLE Triple Big Blue Jumbo Heavy Duty Filter Housing is engineered for high-flow applications, accommodating three 20″ cartridges. Its polypropylene construction ensures durability and chemical compatibility.
Key Features
- Large capacity housing for high-flow systems.
- Pressure relief/bleed valve on the inlet side.
- Includes spanner, mounting bracket, and bolts.
- Food-grade materials for safety.
Technical Specifications
- Model: BB20-TRIPLE
- Length: 570mm
- Inlet/Outlet: 25mm
- Max Working Pressure: 125 psi
Applications
Perfect for industrial and commercial systems requiring multi-stage filtration for large volumes of water.
