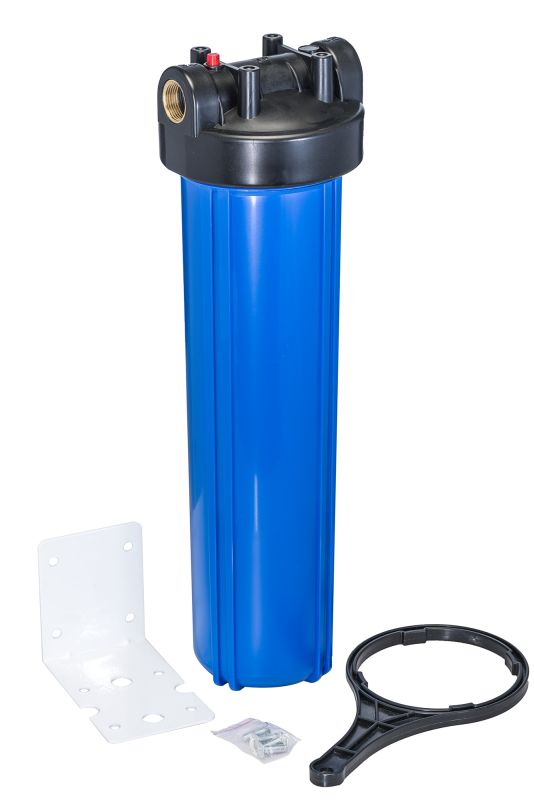

Trevoli 20″ Big Blue Jumbo Heavy Duty Filter Housings are manufactured using high quality Polypropylene. Compatible with a broad range of chemicals, ideal for high flow and heavy sediment applications. The standard bracket is powder coated steel but are also available with stainless steel brackets. They accept a wide variety of 4½″ diameter cartridges. Filter housing options are also available with a high quality oil filled gauge.
Specifications:
Large capacity housing suitable for high flow applications
20″ in length
Pressure relief/bleed valve on inlet side of cap
Comes with spanner, mounting bracket and 4 bolts
Temperature Rating: 2 – 37°C
Maximum working pressure: 125 psi
Brass threaded ports
Made from Food Grade Materials
Model
Length (mm)
Height (mm)
Depth (mm)
Port to Port (mm)
Inlet/Outlet
Suits
BB20
175
590
175
175
25mm
20″ Cartridge
