Trevoli 10″ Triple Big Blue Jumbo Heavy Duty Filter Housings are manufactured using high quality Polypropylene. Compatible with a broad range of chemicals, ideal for high flow and heavy sediment applications. The standard bracket is powder coated steel but are also available with stainless steel brackets and with a stand. They accept a wide variety of 4.5″ diameter cartridges. Filter housing options are also available with a high quality oil filled gauge. Specifications: Large capacity housing suitable for high flow applications
10″ in length
Pressure relief/bleed valve on inlet side of cap
Comes with spanner, mounting bracket and 4 bolts
Temperature Rating: 2 – 37°C
Maximum working pressure: 125 psi
Brass threaded ports
Made from Food Grade Materials
Model BB10-TRIPLE Length (mm) 570 Height (mm) 340 Depth (mm) 207 Port to Port (mm) 555 Inlet/Outlet 25mm Suits 10″ Cartridge x3

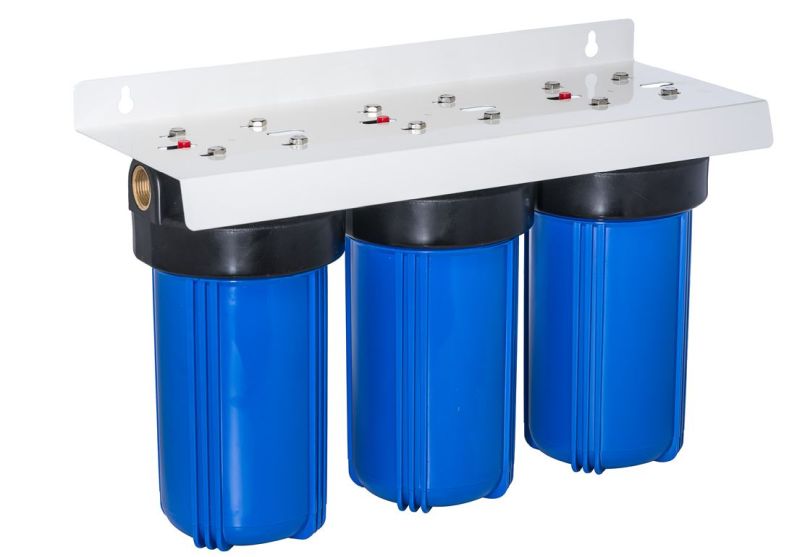

Trevoli BB10-TRIPLE Triple Big Blue Jumbo Heavy Duty Filter Housing
Introduction
The Trevoli BB10-TRIPLE Triple Big Blue Jumbo Heavy Duty Filter Housing is designed for high-flow applications, accommodating three 10″ cartridges. Its polypropylene construction ensures compatibility with various chemicals.
Key Features
- Large capacity housing for high-flow needs.
- Pressure relief/bleed valve on the inlet side.
- Includes spanner, mounting bracket, and bolts.
- Food-grade materials for safe use.
Technical Specifications
- Model: BB10-TRIPLE
- Length: 570mm
- Inlet/Outlet: 25mm
- Max Working Pressure: 125 psi
Applications
Ideal for industrial and commercial systems requiring multi-stage filtration.
