Trevoli 10″ Single Big Blue Jumbo Heavy Duty Filter Housings are manufactured using high quality Polypropylene. Compatible with a broad range of chemicals, ideal for high flow and heavy sediment applications. The standard bracket is powder coated steel but are also available with stainless steel brackets. They accept a wide variety of 4.5″ diameter cartridges. Filter housing options are also available with a high quality oil filled gauge. Specifications: Large capacity housing suitable for high flow applications
10″ in length
Pressure relief/bleed valve on inlet side of cap

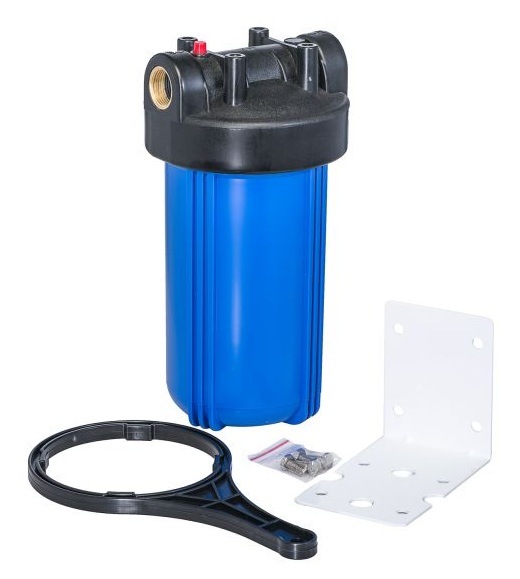

Comes with spanner, mounting bracket and 4 bolts
Temperature Rating: 2 – 37°C
Maximum working pressure: 125 psi
Brass threaded ports
Made from Food Grade Materials
Model BB10
Length (mm) 175
Height (mm) 340
Depth (mm) 185
Port to Port (mm) 175
Inlet/Outlet 25mm
Suits 10″ Cartridge
Trevoli BB10 Single Big Blue Jumbo Heavy Duty Filter Housing
Introduction
The Trevoli BB10 Single Big Blue Jumbo Heavy Duty Filter Housing is crafted from high-quality polypropylene, making it compatible with a wide range of chemicals. Ideal for high-flow and heavy sediment applications.
Key Features
- Large capacity housing for high-flow applications.
- Pressure relief/bleed valve on the inlet side.
- Includes spanner, mounting bracket, and bolts.
- Made from food-grade materials.
Technical Specifications
- Model: BB10
- Length: 175mm
- Inlet/Outlet: 25mm
- Max Working Pressure: 125 psi
Applications
Perfect for industrial and residential water systems requiring robust filtration solutions.
Why Choose Trevoli?
For more details on the BB10 Filter Housing, or to explore other products like Wash Down Pumps, visit our website.
