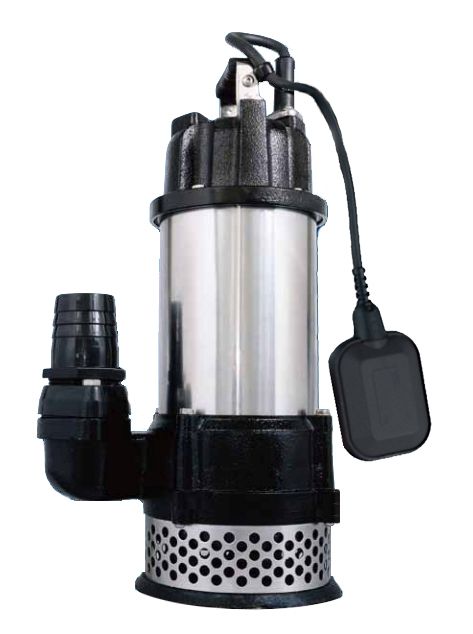

The Trevoli BAH-400 submersible pump range is ideal for both clean and dirty water while being useful for jobs requiring that extra amount of head. Its robust design and high output pressure makes it ideal for construction sites and industrial drainage. Constructed from corrosion resistant materials and featuring a double mechanical seal in an oil chamber, the BAH-400 pumps can withstand harsh conditions. These pumps have proven to excel in dripline systems.
Features:
Fitted with a Float Switch
Double mechanical seal
Oil filled motor
Solid stainless steel housing
Power Cable length:10m
Large Carry Handle
Technical Features:
Liquid Temperature: 0°C to 40°C
Protection Class: IP68
Maximum Immersion Depth: 6M
PH level: 6-8
Rated for continuous use
Thermal overload motor protection
Model BAH-400
hp 0.7
kW 0.4
Outlet 32mm
Phase 1
Voltage 220-240
Amps 4.0
Max Solid 8mm
Trevoli BAH-400 Submersible Pump: Robust and Reliable
Introduction
The Trevoli BAH-400 submersible pump is designed for both clean and dirty water applications, offering high output pressure and robust construction. Its corrosion-resistant materials and double mechanical seal make it ideal for harsh environments.
Key Features
- Fitted with a float switch for automatic operation.
- Double mechanical seal in an oil chamber for enhanced durability.
- Solid stainless steel housing for corrosion resistance.
- 10m power cable and large carry handle for convenience.
Technical Specifications
- Model: BAH-400
- Power: 0.7 hp / 0.4 kW
- Outlet: 32mm
- Max Solid Size: 8mm
Applications
Perfect for construction sites, industrial drainage, and dripline systems, the BAH-400 excels in demanding conditions.
