PENTAX AQUADOMUS – VARIABLE SPEED MULTISTAGE PUMP WITH BLUETOOTH/WIFI APP CONTROL
AquaDomus is an integrated ‘Plug & Play’ system to manage water pressurisation for domestic and residential applications.

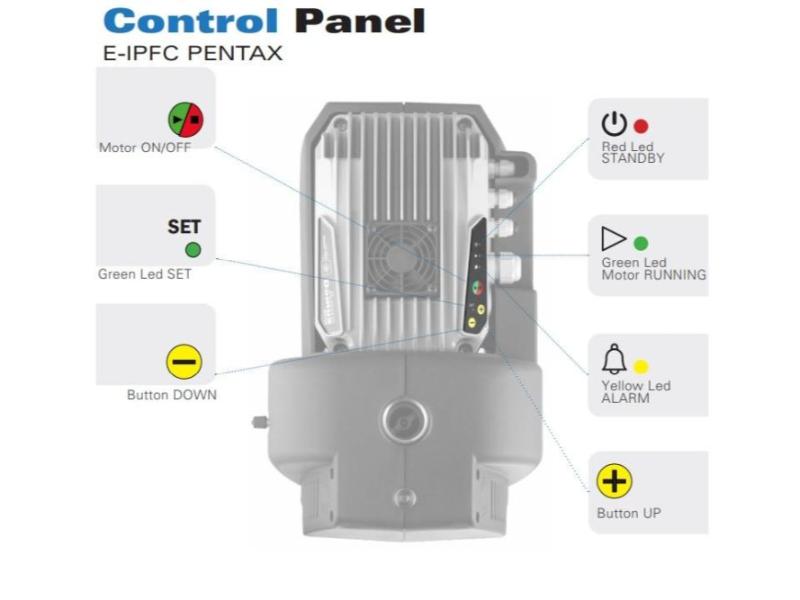

It consists of a Pentax multistage pump, a permanent magnet synchronous motor, an electronic inverter control, an expansion tank, a non-return valve and a pressure sensor. The electronic control (E-IPFC) manages the operation of the system to maintain the pressure constant even if the conditions of use changes. Thus, the Aquadomus is only operated when and what is needed avoiding useless energy waste and extending the life of the components connected to the system.
TECHNICAL FEATURES:
Water supply and pressurisation system consisting of a Pentax multistage pump, permanent magnet synchronous motor, electronic inverter control, expansion tank, non-return valve and pressure sensor.
Fluid temperature -5 ÷ +35
Rated pressure: Max 7 bar
4 poles synchronous motor with permanent magnet max speed
4200 RPM
Protection grade IP44
Insulation Class: F
SPECIFICATIONS:
Voltage: 230v
Power: 0.8kW
Max Head: 60m
Max Flow Rate: 90 LPM
Pressure: 85 PSI
Inlet/Outlet: 25mm
ADVANTAGES:
Adaptable performances: The extreme flexibility of the AquaDomus pressurisation unit offers the user an infinite combination of pressures and flows within the working range with a maximum pressure of 6 bar and a flow of 5.4m3/h.
Energy saving: Thanks to the frequency modulation of the inverter, the unit constantly supplies the specific water request, guaranteeing substantial energy savings; in addition, the AquaDomus is equipped with a power limiter so, in its various uses, the unit will never absorb a power of more than 800W for not having power exceeding the limit of the energy supply contract.
Easy installation: The extreme compactness of the unit allows the user to install in any domestic place, the dedicated app allows the user to set up and control continuously the units
Performances: Thanks to the frequency control, the multistage pump of AquaDomus group is able to cover a wide range of performances with flow up to 5.4 m3/h and head up to 6 bar.

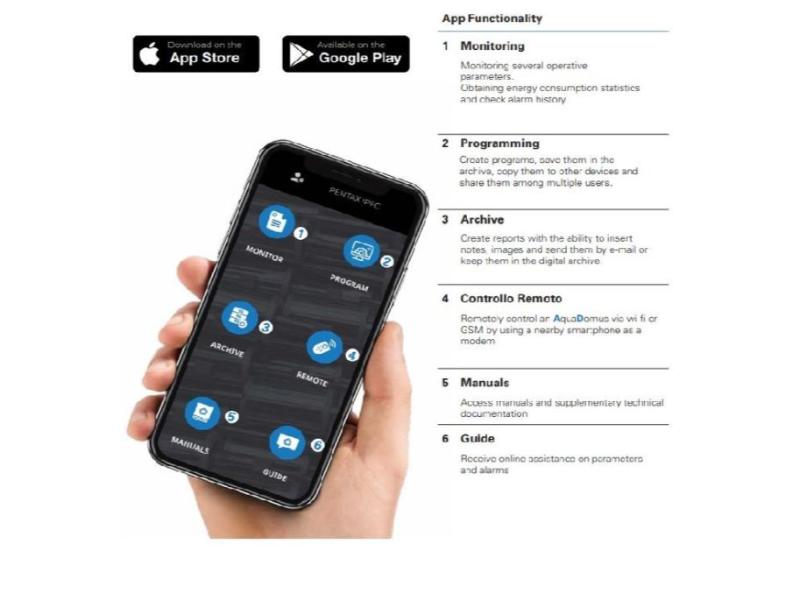

Dedicated app: AquaDomus group can be driven and controlled by a dedicated app “Pentax IPFC” available for Androids and IOS, allowing the possibility to monitor, protect, programming (even remotely) the AquaDomus, showing all the working parameters online.
APPLICATIONS:
Domestic Household
Medium-Large Home
Residential-Commercial
